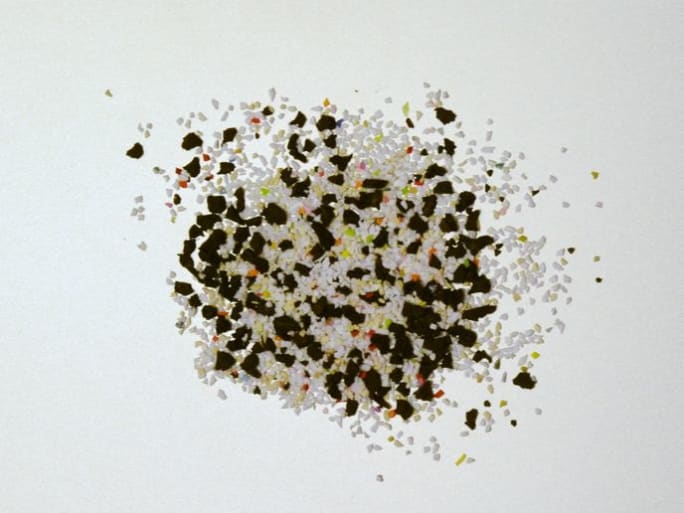

Balancing compounds such as Equal Flexx from IMI Products keep the tire balanced even as conditions change .  Photo by Jim Park

Balancing compounds such as Equal Flexx from IMI Products keep the tire balanced even as conditions change. Photo by Jim Park

The jury is still out on wheel balancing. We now have certified tests that show a small percentage of improvement in fuel efficiency, and balancing has proven to help prevent certain forms of life-robbing irregular wear, but it's not a routine maintenance item at a large number of fleets.

Years ago, before the big-name tire manufacturers got really good at producing tires, balancing was almost a requirement. Today, with much tighter manufacturing tolerances and state-of-the-art tools, tires are much more uniform and consistent in build. You can make an argument that modern tires really do not need balancing.

On the other hand, after the first mile of use the tire is no longer the same as the day it left the factory. Rubber scrubs off, chunks of tread get ripped away, irregular wear scrubs away tread rubber and on it goes. Maintaining balance in that tire may require some outside help.

Fred Staugh, vice president of maintenance at CRST, does not balance his tires. He spends a little more time ensuring they are mounted properly. He believes that unless there's a defect in the tire, if the tire and wheel assembly is round and running true, it won't need balancing.

"When I say round, I'm talking 60- or 90-thousandths of an inch of tolerance on radial and lateral runout as measured with a dial indicator," he says. "If you have that inspection process down and you use those guidelines, there's no reason on Earth to balance a steer tire."

Staugh believes you can eliminate the need to balance tires just by installing them properly and then checking them for runout and a heavy spot while on the vehicle. He says rims should be inspected with a runout gauge before the tire is mounted, and they should be within the manufacturer's tolerance. The mounted tire should be checked for concentric mounting by verifying the gap between the rim flange and the bead seating ring is the same all around the tire and on both sides of the tire.

"Even if you know you're putting a round tire on a round wheel, you still have to check after it's installed for its high spot," cautions Staugh. "With the high spot marked, place it at the 12 o'clock position on the hub where gravity will pull the wheel down onto the hub pilots creating a natural low spot. The two will cancel each other out. It doesn't get any better than that."

Guidelines for these inspection and mounting procedures can be found in the ATA's Technology and Maintenance Council Recommended Practice library. Look for RP 214D.

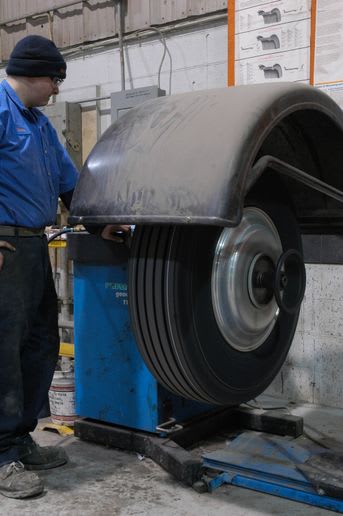

Balancing tires and wheels before they are installed helps ensure a smooth ride and better tread life. Photo by Jim Park  -

Balancing tires and wheels before they are installed helps ensure a smooth ride and better tread life. Photo by Jim Park

Lloyd Hair, maintenance director at heavy-hauler, Keen Transport, on the other hand, routinely balances steer tires, and will do so again if he gets driver complaints about ride or handling. He does not balance drive or trailer tires.

"I'll use as much as 16 ounces of weight to balance a tire," he says. "If it needs more than that, I'll deflate the tire, break the bead and rotate the tire 180 degrees on the rim and try it again. That more often than not does the trick. If that doesn't work, I send the tire back to the manufacturer."

When he gets a driver complaint about vibration, he doesn't automatically pull the wheels off and balance them; he investigates the complaint.

"If the tires are wearing properly and they aren't damaged, a vibration is usually a sign that something else is wrong," he says. "If you assume it's the tire and put a weight on it our use some balancing compound, you might be masking a driveline problem, such as a failing U-joint."

Hair says he cringes when he gets a complaint about vibration.

"It usually takes two or three hours to identify the source of a vibration," he says. "You have to find it, because it's a warning sign. It's not the problem. Balancing is sometimes wrongly used to mask a problem that really should be fixed."

Fleets have their choice of balancing methods, including internal balancing compounds, balancing rings that mount between the hub-face and the wheel, and weights. In days gone by, fleets were known to use things like golf balls and used anti-freeze to balance tires. The latter two do not come highly recommended by tire experts.

Most of today's name-brand balancing compounds are generally reusable and not harmful to the inner lining of the tire. Some older compounds were accused of clumping inside the tire after being exposed to moisture. That's generally not a risk factor anymore. Choose a product with a recognizable name that stands behind the product.

Balancing rings are also reusable and like the balancing compounds, will react to the actual balance condition of the tire/wheel assembly and move weight to where it's needed in the wheel to maintain balance. Name brand products are known last through several tires, which helps reduce the lifecycle cost.

Balancing weights are generally installed when the tire is initially mounted on a wheel. Unless the tire experiences a severe chunking or damage of some sort, balancing weights will help keep a tire balanced through much of its service life. Regulations in some jurisdictions now prohibit the use of lead weights, so suppliers are using different compounds such as zinc and steel.

TMC's S.11 Energy Conservation Study Group recently updated RP 1111, Relationships Between Truck/Trailer Components and Fuel Economy. In there you'll find a notation saying "tire balance across 18 tires on a tractor-trailer combination has been documented to save as much as 2.2% SAE J1326/RP 1102 Type II fuel testing at two different facilities."
