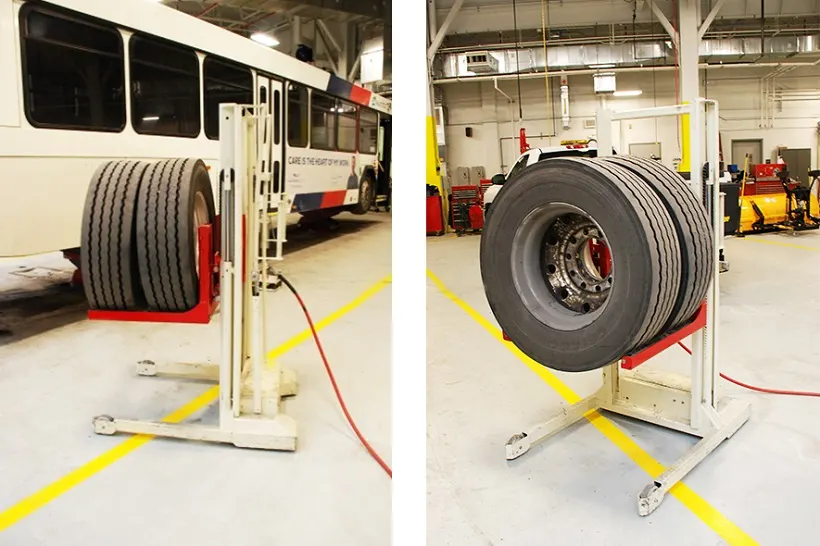

Stertil-Koni’s WDA-500 high lift wheel dolly is designed to improve safety and performance when installing and moving commercial vehicle tires.

The WDA-500 model has a capacity of 1,100 pounds,  handy when removing large wheels that can often weigh up to 500 pounds each.  The crane arm is fitted with a 360-degree pivoting hook for greater range and flexibility and can swivel aside to allow wheel removal operations to be completed without straining the technician.

The WDA-500 can accommodate wheel sizes from 10.63 to 51.18 inches. The dolly stands 47.17 inches high with a width of 45.28 inches and length of 33.30 inches. Lifting height is 28.23 inches. It weighs 220 pounds and can also be used with Mobile Column Lifts, platform, and inground lifts.
