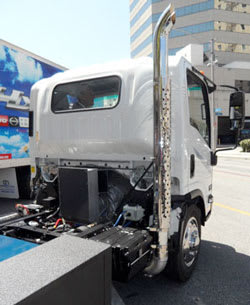

A chrome-plated exhaust stack emits a muted whoosh as this truck's turbine engine spins at tens of thousands of RPMs, drawing the curious among attendees at this ride-and-drive event in downtown Long Beach, Calif.
As part of the Alternative Clean Transportation Expo held last week, the Wrightspeed Route truck is among the vehicles available for sampling. The others have diesel and gasoline engines that run on natural gas, propane and more mundane fuels, but the Route is the only one with a turbine.
It's a "microturbine," actually, and it nestles under the cab of the Isuzu NPR, wrapped in aluminized insulation. Other powertrain components - a 200 kW (268-hp) generator and a 26-kW lithium-ion battery pack -- sit between the truck's frame rails.
At the rear axle are two geared traction drives that use the electricity to propel the truck. There's no body on the frame, so onlookers can freely inspect these parts.
Ian Wright, a native New Zealander who designed the system, invites me to take a spin in this Wrightspeed Route truck. We pile into the cab, buckle up and whir off toward Ocean Avenue, the city's main drag. The accelerator is linked to the traction drives, which run through a 2-speed gearbox, and they smartly push us into motion and down the street. And they drag us down when I take my foot off the pedal.
"It's regenerating now?" I ask Wright, who nods and says, "Oh, yes." The vehicle's motion is being converted into electricity by the generator and sent to the batteries. I turn right onto a cross street and accelerate again. This street quickly dips downhill toward a stop sign, and I again take my foot off the go pedal and the generator pulls down our speed on its own, with no help from the brakes.
"It does it rather aggressively," I remark as I observe the truck's about to stop on the downgrade, so I press lightly on the pedal and move to the painted stop line. "It's almost too aggressive."
"We find in our demonstrations that people get used to it very quickly," Wright says, "and they like it."
"It's a little like driving with a Jake Brake engaged," I say. "You just keep your foot on the pedal and take it off when you want to slow down."
Except, of course, a Jacobs Engine Brake sits atop a diesel engine, and the Isuzu's four-cylinder diesel has been yanked out and replaced by the turbine. So the driveline braking is done electrically, by the generator, which can make as much as 400 retarding horsepower, according to specifications.
Nothing I do with the pedal affects the 250-horsepower microturbine, whose speed is controlled by electronics that are part of the Wrightspeed Route system. The turbine idles at 25,000 RPM and works at a constant 96,000 RPM, Wright explains.
"Ninety-six thousand?!" I exclaim, mentally comparing this to a small diesel's 2,300 or so RPM top turning speed.
"Yes," he smiles.
With no reciprocating pistons or rods, turbines can spin smoothly as well as very fast while their blades compress inlet air, mix it with fuel and ram the super-heated mix against another set of blades to turn the output shaft. For their size turbines can make a lot of horsepower - or thrust in an aircraft - but not much torque.
In this truck, the torque comes from the electric-powered geared drives and they produce another wow-number - 10,600 pound-feet from 0 to 9 mph.
Wright is an unassuming fellow and makes no wild claims about his creation. But in a sales brochure, marketers say the Route system uses half the fuel of a diesel. It'll burn a variety of liquids and gases, and its exhaust is so clean that it needs no aftertreatment. Hmm.
All too soon our round-a-long-block drive is done, and I back the truck into its slot at the curb. I shut off the key and Wright thanks me for taking time to drive the truck. "Thank you," I say.
As I walk toward the truck's rear the turbine keeps whining, then slows when the controls sense that the batteries have been sufficiently charged. Gradually it spools down and the aviation-like sound dissipates. What a neat machine!
Whoops, I forget to ask what it costs. But Wright has agreed to let me take a Route-powered truck out on a longer drive the next time I'm in California, and I'll price one then. Stay tuned for a more extensive article.
