Space-saving wire-to-wire connector solution for transportation and other rugged applications requiring superior mating and IP67 protection against dust and water

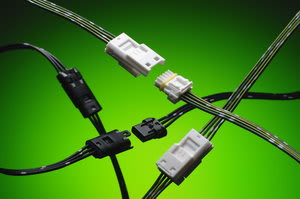

Molex's new Mizu-P25 miniature waterproof connectors are said to be the first and only sealed wire-to-wire system of its size in the market certified to the IP67 standard.

The space-saving 2.50mm (.098") pitch Mizu-P25 connectors are available in a low-voltage version rated up to 125 volts and a high-voltage version rated up to 250 volts.

"Designed in Japan, the word 'mizu' means water in Japanese, and the 'P' designates the Mizu-P25 connectors as dust-proof and water-proof," says Yumi Fukui, global product manager, Molex. "The IP67 rating optimizes mating and signal integrity in rugged environments, making the Mizu-P25 connector ideal for demanding performance requirements in motorcycles, vending machines, air conditioners, and any application packing more and more electronics into increasingly tighter spaces."

Mizu-P25 connectors incorporate color coding of housings, low-insertion terminal design, and other design features to simplify operator assembly. A raised-body male terminal design provides polarization to prevent accidental mismating. The integral watertight seal stopper and positive locks ensure secure mating retention. A cap lock system provides low terminal insertion force and high sealing performance. The spring-beam design affords high pressure and small deflection in high-vibration applications.

"The space-saving Mizu-P25 system is helping Molex customers in a wide range of industries fit wire-to-wire solutions through smaller spaces, holes and hinges. Both the low and high voltage versions provide some of the smallest mated diameters of any connector system on the market today," says Fukui.

For additional information and technical specifications for the Mizu-P25 Miniature Waterproof Connectors, please visit www.molex.com/link/mizup25.html
