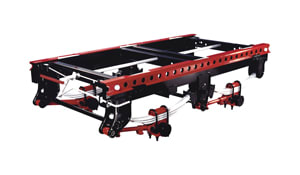

The Hutch 9800 Series of heavy-duty trailer slider systems can fit a standard 49-inch tandem axle or a widespread axle application.

Overall subframe heights from 8.5 inches to 10.5 inches deep, combined with the Hutch 9700 Series suspension, results in a wide variation of mounting heights and weight capacities up to 25,000 pounds per axle.

The Hutch EZ-Pull pin release system comes standard on the 9800 Series, and the Hutch P3 air-actuated system is available as an option. Eight models within this line include the 9801, 9811, 9802, 9812, 9821, 9822, 9831 and 9832. Each model includes its own set of features, various widths, and body rail lengths up to 328 inches.

The 9800 Series Trailer Sliders offer:

* Full-length slider pads are made from UHMW material
* Symmetrical crossmembers for more uniform stress distribution
* Side rails made from high-strength, low-alloy steel
* Slot welding keeps edges of side rails and crossmembers weld-free
* Pre-punched holes for easy air line access
* Spring loaded, forged lock pins ensure secure slider placement
* High-strength hold down clips front and rear help ensure slider retention and control during repositioning
* Various axle configurations with single, 2, 3, 6, 7 or 8 leaf springs for wide variety of options
* Low-profile body rails in material thickness of .232" or .275"
* Holes punched in 4" increments for precise variations in vehicle weight distribution
