Hydrogen is one of the most abundant substances in the universe. It is also an incredibly powerful, energy dense fuel. A gallon of hydrogen contains three times the energy content as a gallon of gasoline. That’s why it’s been used as rocket fuel since the earliest days of the Space Age.

Hydrogen is a clean fuel, too. Water is the only by-product of the hydrogen combustion process.

At a glance, hydrogen seems like the perfect fuel for a modern, transportation-dependent society threatened by climate change.

But there are significant problems with hydrogen, as well.

It’s a very expensive, and energy-intensive fuel to produce in large quantities. It’s also unsafe. The fuel is so volatile that it can ignite, without a spark, at much lower air temperatures than fossil fuels. It’s also odorless and colorless. When ignited, it burns with an intense blue flame that cannot be seen in daylight.

Obviously, those realities also make hydrogen a difficult fuel to store, transport and carry on vehicles.

But those hurdles notwithstanding, there is widespread hope that hydrogen will prove to be the Holy Grail for modern transportation systems. Work is being carried out all over the world now to find ways to make hydrogen safe and reliable to use in everything from container ships, aircraft, passenger cars and – yes – trucks.

And Bosch has taken an early lead in that technology race.

An All-New Energy Economy

At the CES 2024 (formerly the Consumer Electronics Show) Bosch announced that it was working on a liquid-hydrogen internal combustion engine. The German technology company even ventured that it might every well have a prototype engine ready for public viewing at the IAA Truck Show in Hannover, Germany, in the Fall.

At ACT Expo in Las Vegas, on May 22, Bosch engineers gave journalists an overview of their progress. This included a look at an early prototype engine built in collaboration with the Southwest Research Institute (SwRI).

Peter Tadros, regional president for power solutions at Bosch began by saying that the company believes that hydrogen fuel can help achieve a “climate neutral state” for transportation in the near future. Which is why Bosch is involved in all stages of this hydrogen value chain.

Tadros said to date, Bosch has already invested $530 million in hydrogen research and development. By 2030, the company expects to have hydrogen internal combustion engines ready for global markets. And it expects revenue streams of around 5 billion euros from hydrogen technologies once they have matured.

These technologies obviously include the hydrogen fuel cell system Bosch developed for Nikola, Tadros added.

But the next step is a hydrogen internal combustion engine. And for that portion of the presentation, Tadros turned things over to Ryan Williams, spark-ignited engine research and development for SwRI.

Williams began by outlining a few of the reasons it has been so difficult to develop hydrogen ICEs. “The first reason is there's simply not enough hydrogen available at scale,” he noted. “Although we think the time is approaching when it is becoming more readily available.”

A more pressing issue from an engineering standpoint is developing a robust fuel system that can deal with hydrogen, Williams added. To address this issue, he said that Bosch is working on two parallel development paths. One is a direct-injection fuel system. And the other is a port-injection system.

“We are all in with both of them,” he said. “We believe we have a faster-to-market solution with the port fuel injection system. And we're planning to go into production with some OEM customers within two years with it.”

It’s Still an Engine

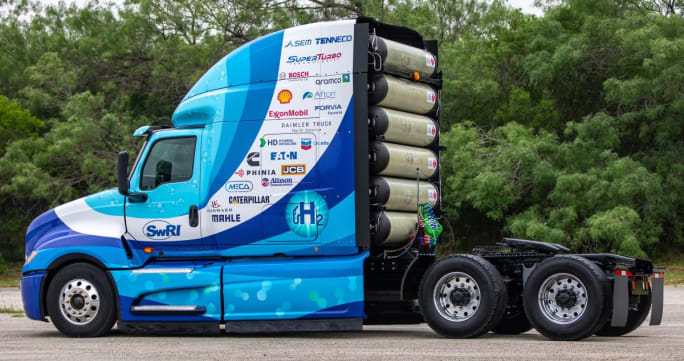

Just a few feet away from the Bosch booth on the ACT Expo show floor was the SwRI booth, dominated by an International RH tractor. The truck was covered in corporate logos – much like a NASCAR stock car – with companies actively supporting SwRI’s hydrogen ICE research.

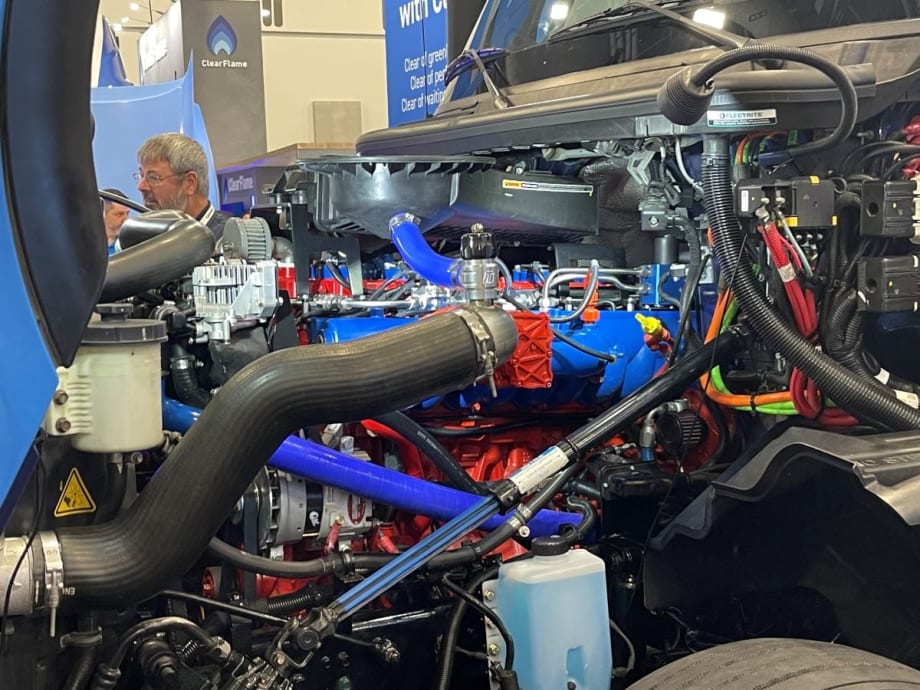

The RH model’s hood was pitched forward, revealing an oddly colored red and blue engine. The powerplant was immediately identifiable as an ICE. Although it did have some unusual-looking components – particularly on the top portion of the engine.

Williams explained that all the red components were exactly the same as on the Cummins X15N CNG engine that SwRI engineers modified to run on hydrogen. For demonstration purposes, all new, hydrogen-specific components on the engine had been colored blue to differentiate them.

“You can recognize that this still an engine,” Williams said. “And about 90% of its parts are going to stay the same as if this were a diesel engine. In fact, everything below the head gasket is going to stay the same. We're only adapting the air system and the fuel system of the engine to run on hydrogen.”

That means, Williams explained, that hydrogen engines can use the existing engine manufacturing base and all the human capital that supports them.

“With a hydrogen engine, you’re still going to need a crankshaft specialist, camshaft designer, an expert in engine blocks, and so forth,” he said. “And that extends all the way into production and when products are out in the field. So, if you have a service issue, it’s going to be well understood. Because servicing a hydrogen engine is very much the same as servicing a diesel engine.”

In Red, ICE and Blue: The Hunt for a Hydrogen Truck Engine Part 2, learn the differences between a diesel engine and one powered by hydrogen, as well as some indications as to how they'll perform in real-world fleet operations.
