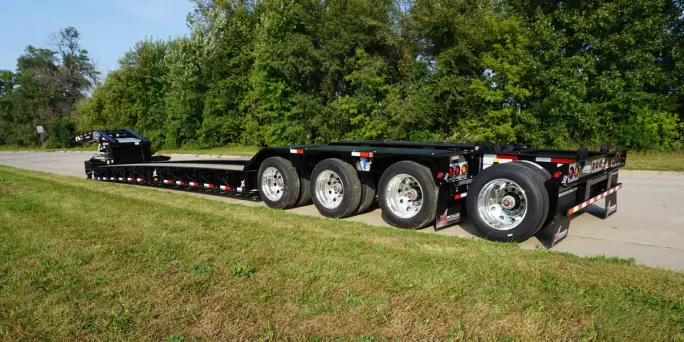

XL Specialized Trailers' XL Guardian 110 HDG trailer is a standardized construction trailer readily available at dealer locations.  -  Photo: XL Specialized Trailers

XL Specialized Trailers' XL Guardian 110 HDG trailer is a standardized construction trailer readily available at dealer locations.

Photo: XL Specialized Trailers

XL Specialized Trailers introduced a standardized construction trailer with a hydraulic detachable gooseneck lowboy design.

The low-profile XL Guardian 110 HDG trailer is 53 feet long and has a capacity rating of 110,000 pounds in 12 feet concentrated.

The gooseneck design provides weight savings and versatility, allowing scrapers to load over the top. It features a relief cutout, giving truck fenders clearance, and two removable kingpin settings which add flexibility across various truck setups. On the neck, a rotating work light illuminates the area for added safety and visibility when loading.

The gooseneck uses hydraulics to detach for loading and unloading efficiently — and easily reconnects after, XL officials said in a press release

The main bed offers a 22-inch loaded deck height. Operators can adjust the height of the deck for diverse loads with a five-position variable ride height in the neck and manual ride height in the rear.

The trailer’s 26-foot-long, 8-foot-6-inch-wide main deck is constructed with a fully welded I-beam design, using 100K flanges and 80K webs, as well as upper-flange reinforcement. The rugged, raised apitong decking is built to last, while a toolbox located in the front provides a place to store chains and other materials.

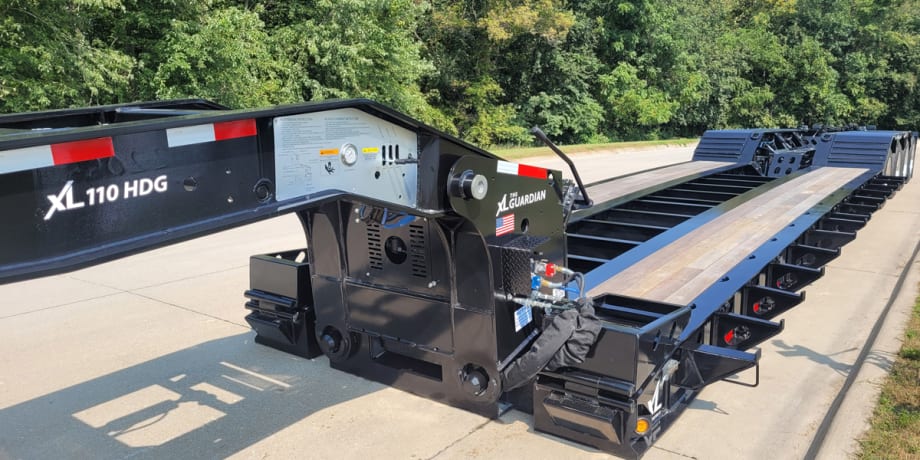

The XL Guardian 110 HDG trailer is 53 feet long and has a capacity rating of 110,000 pounds in 12 feet concentrated.  -  Photo: XL Specialized Trailers

The XL Guardian 110 HDG trailer is 53 feet long and has a capacity rating of 110,000 pounds in 12 feet concentrated.

Photo: XL Specialized Trailers

Heavy-duty swing-out outriggers add 12 inches of deck width on each side for flexibility in the size of loads. The outriggers swing to the middle of the deck, making a strong double-outrigger point in the center of the deck. A heavy-duty front pull-out outrigger eliminates the need to stow and carry loose outriggers.

In the rear of the main deck, the recessed cross-members make a bucket well. Combined with the open boom trough design in the wheel area, this design provides a solution for transporting excavators low and safe, company officials said. D-rings are placed throughout the rear of the deck.

The Guardian is a three-axle trailer that can be run by itself or with an added flip axle, a spreader bar and flip, a single-axle power booster or a hydraulic flip axle. XL’s new bolt-on recessed hydraulic flip axle option houses the hydraulic cylinder, quickly flipping the axle without the need for a forklift. This allows for better loading clearance over the flip axle and easy swapping between flip axles and boosters.

The Guardian is backed with XL’s full five-year structural, three-year paint and one-ear year parts warranty. These units are now available at dealer locations across the U.S.
