TMC Survey Reveals Misinformed View of Fuel-Efficient Tires

March 2015, TruckingInfo.com - WebXclusive

by Jim Park, Equipment Editor - Also by this author

SHARING TOOLS        | Print Subscribe

To answer a question posed by no small number of fleets, the American Trucking Associations' Technology & Maintenance Council's S.2 Tire & Wheel Study Group recently conducted a survey on tire mileage and fuel savings as they relate to low-rolling resistance tires.

It's often claimed by tire manufacturers that fuel savings accrued with LRR tires outweigh the shorter overall miles-to-removal generally assumed to be the result of their thinner treads.

The findings of the survey were a little surprising, with a few bits of what could even be called contradictory findings. The findings showed that in all cases except trailers, low-rolling-resistance tires actually lived longer than standard tires, which sort of lays to rest the assumption that they don't last as long. At the same time, a majority of fleets reported that fuel savings did not offset the cost of the "presumed" shorter-than-standard lifespan of the LRR tires.

Generally speaking, LRR tires are presumed to cost about 15% more than standard tires, with a reduced tread life of about 30%. The presumed 3-4% fuel savings potential of these tires is believed to offset the two negatives.

Peggy Fisher, president of Tire Stamp and regular contributor to TMC's S.2 task force work, had an interesting explanation for the apparent dichotomy.

"Among other things, the survey showed that a sizeable number of fleets (29%) do not know what their fuel economy is -- which is very odd in this day and age," she says. "Therefore, it is not surprising that they didn't know they are getting better tread mileage on low-rolling-resistance tires than non-low rolling resistance tires. Only the trailer tires were reported as getting less tread mileage, and it just so happens that we all know that trailer tires are the worst maintained in the fleet."

Fisher is quick to point out that there is a direct correlation between tire maintenance and tire life. It's not hard to believe that if maintenance is poor, then so too will be tire life.

"We know from studies done in previous years that maintenance of truck tires is poor, with only 44% of tires in an earlier study found to be within +/- 5 psi of target pressure," she points out. "If tire maintenance has not improved much since 2002 when that study was done -- and I do not think it has significantly -- then it is not surprising that fleets are not getting the fuel economy and tread mileage they had hoped for, since both tread mileage and fuel economy are seriously impacted by improper tire inflation."

Fisher presented the findings of the survey at the S.2 Tire & Wheel Study Group session at TMC in February.

Fisher says 51 fleets responded to survey, the vast majority being linehaul and regional operators running Class 7-8 vehicles. Of the responding fleets, 43% had 100-499 power units while 41% had 500 or more power units. Some 85% of fleets indicated they were running LRR tires, and 63% of those fleets have 50% or more of their vehicles on such tires.

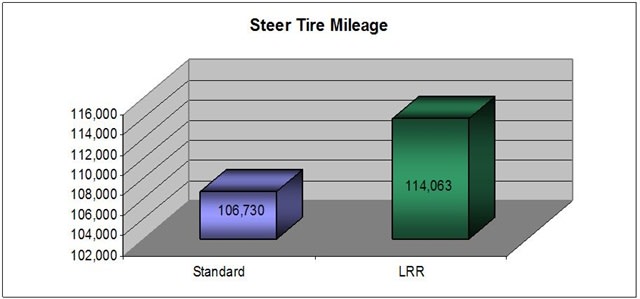

The range of mileages on steer tires may surprise some. Fleets were asked to check mileage range boxes (<50,000, 50-100,000 and 100,000-150,000 miles), so the exact number of miles the tires ran may not be reflected in the results. Fisher calls the results a "guesstimate" based on a weighted average for each group.

"The numbers seem a little low, but the interesting thing is that low-rolling-resistance tires, in general, outperformed the standard tire by almost 10%," she said. "The results of the drive tire section showed similar results."

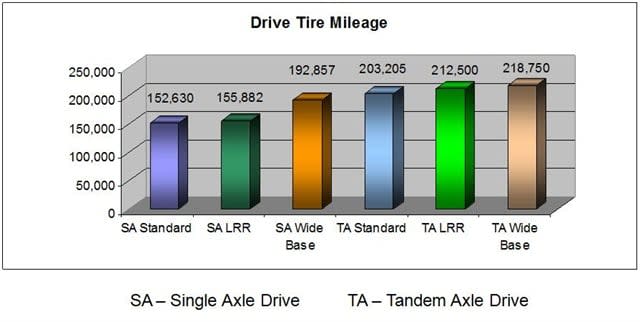

The drive tire section of the survey broke out single and tandem drive axles as well as standard, LRR and wide-base single tires. In both cases, WBS performed the best in terms of miles to removal, followed by LRR tires with standard tires bringing up the rear.

On single drive axles, WBS tires outlive the others by quite a margin. The range wasn't quite so stark for the tandem axles.

"I grouped these together for the benefit of fleets considering going from 6x4 to 6x2," Fisher said. "You can infer from these results that you will see a mileage shortcoming in the single-drive axle group, but that should hardly come as a surprise."

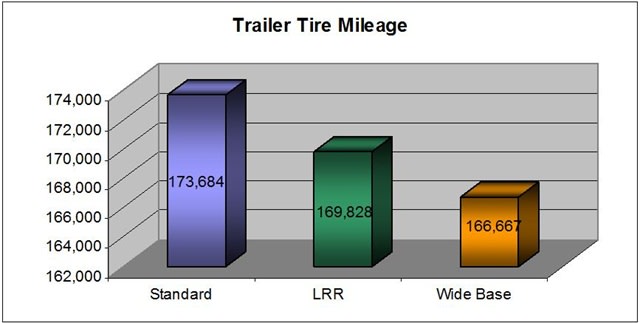

In looking at trailer tires, the victory went to standard tires. They outperformed LRR tires by an average of close to 4,000 miles, and outlived the WBS tires by about 7,000 miles.

"Trailer tires revealed results opposite to what we saw at the other wheel positions," said Fisher. "Maybe this is where people get the perception that they get poorer mileage from LRR tires. Are the trailers not performing as well because they are not being maintained as well? We don't know for sure that this is the case, but we do know that trailer tires are typically not well maintained."

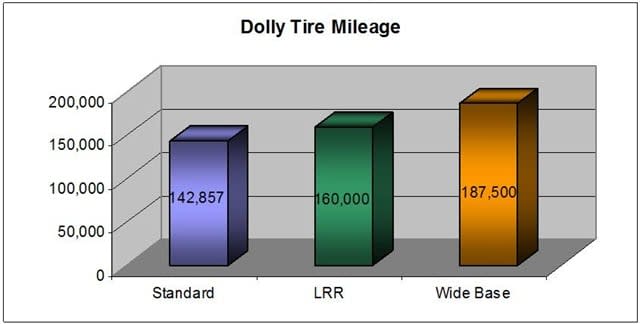

Trailer dollies also revealed an interesting exception. As a trailing wheel position, you might expect performance similar to a trailer, but here we see the opposite is true. WBS tire outperformed the other two handily, going out 45,000 miles further than the standard tire and about 27,000 miles farther than the LRR tires.

"The dolly tires were surprising," Fisher noted. "You expect to see dolly tires performing like trailer tires, but that is certainly not the case. Trailers are just dragged down the road in one direction, but dollies are going back and forth a lot. That's why we tend to get a lot of irregular wear on them but the LRR and WBS tires here actually got better mileage."

Perceived value?

When asked to report on the fuel savings they realized with their tire selections, fleets indicated low-rolling-resistance tires averaged a 1.9% improvement in fuel savings and 2.2% with wide-base singles. The next question was, "Did the fuel savings meet your expectations?" About one-third (29%) said yes, while slightly less than half (42%) said no. As might be expected, 29% said they were not sure.

"These results blow my mind," Fisher said, leaving little doubt at her dismay with the high level of uncertainty. "Nearly one third of the group who bought LRR to reduce fuel consumption didn't know if the tires were saving them money or not. It seems to me you’d be monitoring that a bit more closely."

The final shocker came with the question, "Did fuel savings pay for lost tread rubber?" Only 40% said yes; 60% said no. That's hard to reconcile with the fact that in most cases the LRR tires ran more miles than their standard counterparts -- with trailers being the notable exception.

It would seen that if some fuel economy improvement is a given with the fuel-efficient tires compared to standard tires, the additional tread life would be a bonus.

"If they were responding to that question based on trailer tire performance, I might tend to agree," Fisher said. " But if we're considering all wheel positions, I think fleets might be doing better than they think, based on these numbers."

Or, the answer may lie in something Fisher noted at the beginning: "A sizeable number of fleets do not know what their fuel economy is." Since that's a relatively easy thing to measure, and a figure fleets live and die by, one might have good reason to question how good a job fleets do at measuring tread life, which is a more labor-intensive and difficult calculation. "Therefore, it is not surprising that they didn't know they are getting better tread mileage on LRR tires than non-low rolling resistance tires."

This should be a wakeup call to any fleet prepared to condemn LRR tires as non-cost-efficient. Make sure you have accurate measurements before you start criticizing.

Corrected 3/10/2015 -- Previous version contained incorrect references to the distances wide-base single Dolly tires ran compared to their standard and low-rolling-resistance counterparts.

Comments

  1. 1. J. Bennett [ September 16, 2015 @ 03:35PM ]

    Interesting feedback.
    A lack of tire maintenance on trailer tires would cause wear on both the "LRR" trailer tires as well as the standard trailer tires, so why are the LRR trailer tires wearing sooner? I have two questions (forgive me, I am not a tire expert):

    1) What are the differences between trailer and truck treads for both the LRR and standard trailer tires?

    2) Trailer tires are further away from the driver than the truck tires and thus are bound to hit curbs and bumps more often, which not only can damage tires, but knock trailer axles out of alignment. Are stiffer, LRR ,trailer tires more sensitive to this than the less stiff, standard, trailer tires?
